Description
Dimensions
| d | 240 mm | Bore diameter |
|---|---|---|
| D | 440 mm | Outside diameter |
| B | 85 mm | Width |
| d1 | ≈ 316 mm | Shoulder diameter inner ring |
| D1 | ≈ 364 mm | Shoulder diameter outer ring/ inner diameter housing washer |
| a | 340 mm | Distance pressure point(s) |
| r1,2 | min. 4 mm | Chamfer dimension inner ring |
Abutment dimensions
| da | min. 258 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 422 mm | Abutment diameter housing |
| ra | max. 3 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 663 kN |
|---|---|---|
| Basic static load rating | C0 | 1 220 kN |
| Fatigue load limit | Pu | 28 kN |
| Limiting speed | 2 400 r/min | |
| Calculation factor | A | 9.01 |
| Limiting value | e | 1.34 |
| Calculation factor | X | 0.54 |
| Calculation factor | Y0 | 0.44 |
| Calculation factor | Y1 | 0.47 |
| Calculation factor | Y2 | 0.81 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6
- Internal clearance: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

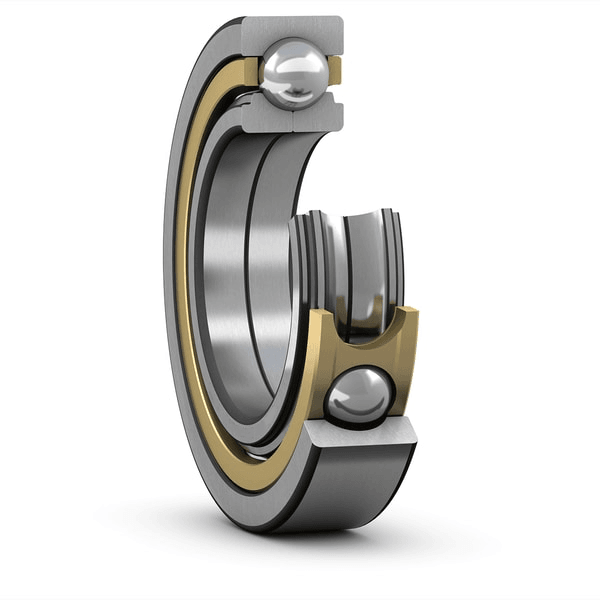

Four-point contact ball bearings can accommodate high axial loads in both directions and small radial loads. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces. The outer ring, with ball and cage assembly, can be mounted separately from the two inner ring halves.
- High-speed capability
- Accommodate high axial loads in both directions and small radial loads
- Require considerably less axial space than double row angular contact ball bearings
