Description
Dimensions
| d | 170 mm | Bore diameter |
|---|---|---|
| D | 260 mm | Outside diameter for two-piece outer ring |
| B | 84 mm | Width |
| d1 | ≈ 191 mm | Shoulder diameter inner ring |
| D1 | ≈ 226 mm | Shoulder diameter for two-piece outer ring |
| K | 6 mm | Radius of lubrication hole in two-piece outer ring (to be multiplied by two to get 'K') |
| r1,2 | min. 2 mm | Chamfer dimension inner ring |
| a | 222 mm | Distance pressure point(s) |
Abutment dimensions
| da | min. 125 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 170 mm | Abutment diameter housing |
| ra | max. 2 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 281 kN |
|---|---|---|
| Basic static load rating | C0 | 405 kN |
| Fatigue load limit | Pu | 11.6 kN |
| Reference speed | 2 400 r/min | |
| Limiting speed | 2 600 r/min | |
| Calculation factor | kr | 0.095 |
| Limiting value | e | 1.14 |
| Calculation factor | X | 0.57 |
| Calculation factor | Y0 | 0.52 |
| Calculation factor | Y1 | 0.55 |
| Calculation factor | Y2 | 0.93 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5
- Internal clearance: table, drawing no
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

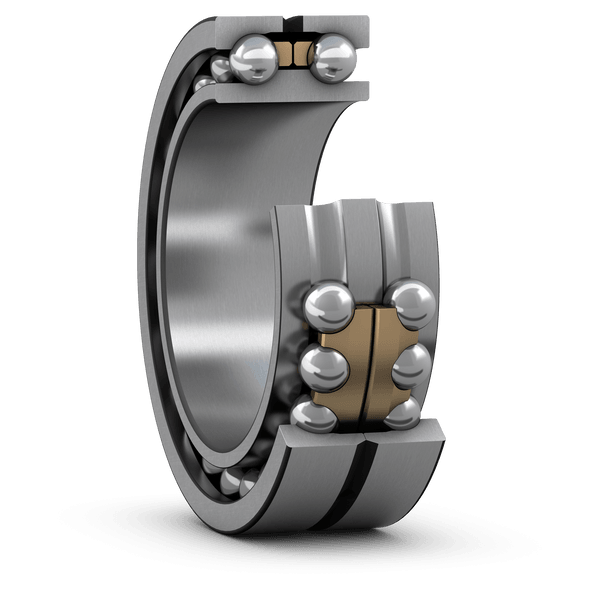

Double row angular contact ball bearings, with split outer ring, correspond to a pair of single row angular contact ball bearings in a face-to-face arrangement, while requiring less axial space. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces.
- Split outer ring
- Accommodate very high axial loads in both directions, radial loads, and tilting moments
- Suitable where a stiff bearing arrangement is required
- Require less axial space than equivalent pair of single row angular contact ball bearings
