Description
Dimensions
| d | 160 mm | Bore diameter |
|---|---|---|
| D | 215 mm | Outside diameter |
| B | 56 mm | Width |
| C | 50 mm | Width outer ring |
| d1 | ≈ 181 mm | Shoulder diameter inner ring for two-piece inner ring |
| D1 | ≈ 203.1 mm | Shoulder diameter outer ring |
| b | 8.5 mm | Width annular lubrication groove at outer ring |
| K | 4.5 mm | Diameter lubrication hole (outer ring) |
| r1,2 | min. 2 mm | Chamfer dimension inner ring for two-piece inner ring |
| a | 185 mm | Distance pressure point(s) |
Abutment dimensions
| da | min. 165 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 201 mm | Abutment diameter housing |
| ra | max. 1 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 135 kN |
|---|---|---|
| Basic static load rating | C0 | 220 kN |
| Fatigue load limit | Pu | 6.8 kN |
| Reference speed | 2 800 r/min | |
| Limiting speed | 3 000 r/min | |
| Calculation factor | kr | 0.095 |
| Limiting value | e | 1.14 |
| Calculation factor | X | 0.57 |
| Calculation factor | Y0 | 0.52 |
| Calculation factor | Y1 | 0.55 |
| Calculation factor | Y2 | 0.93 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5
- Internal clearance: table, drawing no
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

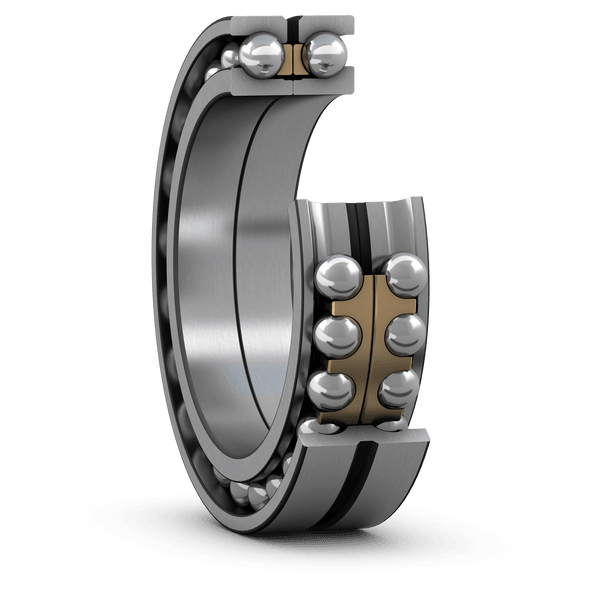

Double row angular contact ball bearing, with wide and two-piece inner ring and relubrication feature, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement. The two-piece inner ring enables incorporation of more balls, resulting in higher load carrying capacity. The annular lubrication groove and holes in the outer ring facilitates relubication.
- Wide, two-piece inner ring
- Accommodate very high axial loads in both directions, radial loads, and tilting moments
- Relubrication feature
- Suitable where a stiff bearing arrangement is required
