Description
Dimensions
| Bore diameter | d | 85 mm |
|---|---|---|
| Outside diameter | D | 150 mm |
| Width | B | 49.2 mm |
| Shoulder diameter inner ring | d1 | ≈ 103.73 mm |
| Shoulder diameter outer ring | D1 | ≈ 135.19 mm |
| Chamfer dimension inner ring | r1,2 | min. 2 mm |
| Distance pressure point(s) | a | 88 mm |
Abutment dimensions
| Abutment diameter shaft | da | min. 96 mm |
|---|---|---|
| Abutment diameter housing | Da | max. 139 mm |
| Fillet radius | ra | max. 2 mm |
Calculation data
| Basic dynamic load rating | C | 124 kN |
|---|---|---|
| Basic static load rating | C0 | 110 kN |
| Fatigue load limit | Pu | 4.4 kN |
| Reference speed | 4 500 r/min | |
| Limiting speed | 3 800 r/min | |
| Calculation factor | kr | 0.06 |
| Limiting value | e | 0.8 |
| Calculation factor | X | 0.63 |
| Calculation factor | Y0 | 0.66 |
| Calculation factor | Y1 | 0.78 |
| Calculation factor | Y2 | 1.24 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5
- Internal clearance: table, drawing no
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

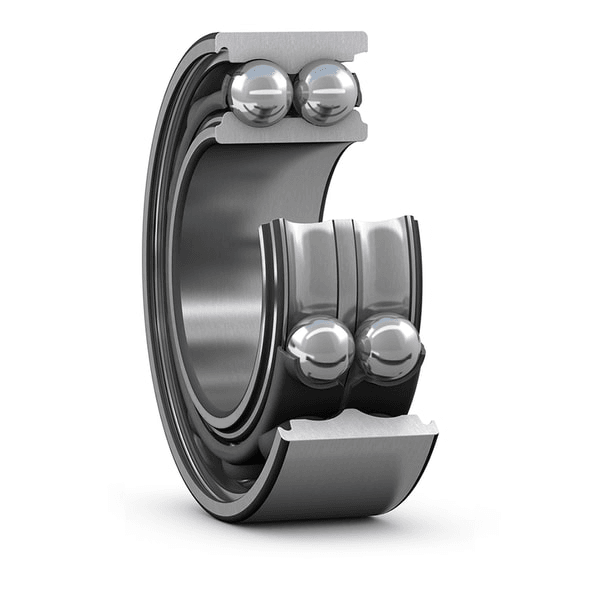

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
- High-speed capability
- Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
- Suitable where a stiff bearing arrangement is required
- Require less axial space than equivalent pair of single row angular contact ball bearings
