Description
Dimensions
| d | 40 mm | Bore diameter |
|---|---|---|
| D | 90 mm | Outside diameter |
| B | 36.5 mm | Width |
| d1 | ≈ 59.4 mm | Shoulder diameter inner ring for two-piece inner ring |
| D1 | ≈ 77.8 mm | Shoulder diameter outer ring |
| r1,2 | min. 1.5 mm | Chamfer dimension inner ring for two-piece inner ring |
| a | 84 mm | Distance pressure point(s) |
Abutment dimensions
| da | min. 49 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 81 mm | Abutment diameter housing |
| ra | max. 1.5 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 68.9 kN |
|---|---|---|
| Basic static load rating | C0 | 57 kN |
| Fatigue load limit | Pu | 2.45 kN |
| Reference speed | 8 000 r/min | |
| Limiting speed | 7 000 r/min | |
| Calculation factor | kr | 0.095 |
| Limiting value | e | 1.34 |
| Calculation factor | X | 0.54 |
| Calculation factor | Y0 | 0.44 |
| Calculation factor | Y1 | 0.47 |
| Calculation factor | Y2 | 0.81 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5
- Internal clearance: table, drawing no
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

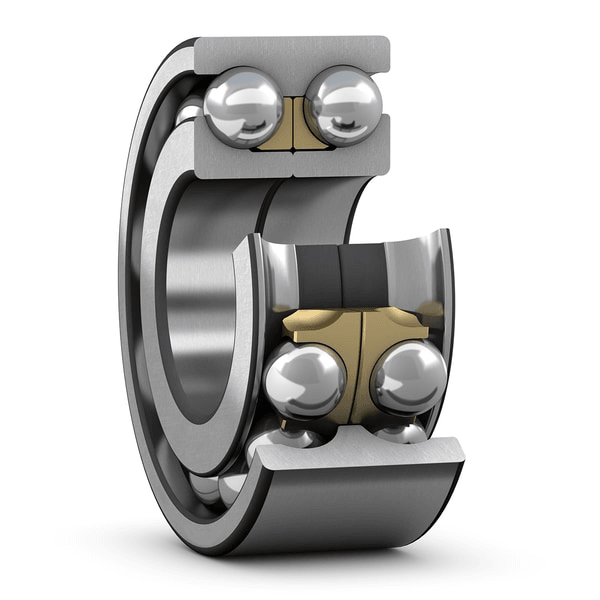

Double row angular contact ball bearings, with two-piece inner ring, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space than the equivalent pair of single row angular contact ball bearings. The two-piece inner ring enables incorporation of a larger number of balls, with a larger contact angle, providing a high load carrying capacity, especially in the axial direction.
- Accommodate very high axial loads in both directions, radial loads, and tilting moments
- Suitable where a stiff bearing arrangement is required
- Separable design means outer ring with ball and cage assemblies can be mounted independently of the inner ring halves
