Description
Dimensions
| d | 340 mm | Bore diameter |
|---|---|---|
| D | 460 mm | Outside diameter |
| B | 56 mm | Width |
| d1 | ≈ 380 mm | Shoulder diameter of inner ring (large side face) |
| D1 | ≈ 422 mm | Shoulder diameter of outer ring (large side face) |
| a | 121 mm | Distance side face to pressure point |
| r1,2 | min. 3 mm | Chamfer dimension |
| r3,4 | min. 1.1 mm | Chamfer dimension |
Abutment dimensions
| da | min. 353 mm | Diameter of shaft abutment |
|---|---|---|
| Da | max. 447 mm | Abutment diameter housing |
| Db | max. 453 mm | Diameter of housing abutment |
| ra | max. 2.5 mm | Radius of fillet |
| rb | max. 1 mm | Radius of fillet |
Calculation data
| Basic dynamic load rating | C | 351 kN |
|---|---|---|
| Basic static load rating | C0 | 610 kN |
| Fatigue load limit | Pu | 12.9 kN |
| Reference speed | 1 500 r/min | |
| Limiting speed | 1 500 r/min | |
| Minimum axial load factor | A | 1.78 |
| Minimum radial load factor | kr | 0.083 |
| Limiting value | e | 0.68 |
| Calculation factor (single, tandem) | X | 0.41 |
|---|---|---|
| Calculation factor (single, tandem) | Y0 | 0.38 |
| Calculation factor (single, tandem) | Y2 | 0.87 |
| Calculation factor (back-to-back, face-to-face) | X | 0.67 |
|---|---|---|
| Calculation factor (back-to-back, face-to-face) | Y0 | 0.76 |
| Calculation factor (back-to-back, face-to-face) | Y1 | 0.92 |
| Calculation factor (back-to-back, face-to-face) | Y2 | 1.41 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal ( ), P6, P5, Normal (inch)
- Internal clearance: CA+CB+CC, G
- Preload: GA+GB+GC
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

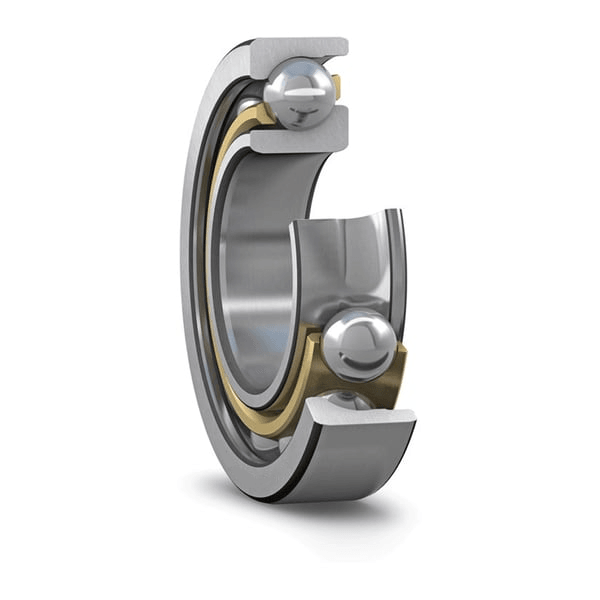

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
- High-speed capability
- Accommodate relatively high radial loads and large unilateral axial loads
