Description
| Bore type | Cylindrical |
Dimensions
| d | 60 mm | Bore diameter |
|---|---|---|
| D | 85 mm | Outside diameter |
| B | 45 mm | Width |
| d2 | ≈ 68.7 mm | Shoulder diameter of inner ring |
| D1 | ≈ 77.5 mm | Shoulder or recess diameter of outer ring |
| s2 | max. 0.5 mm | Permissible axial displacement |
| r1,2 | min. 1 mm | Chamfer dimension |
Abutment dimensions
| da | min. 64.6 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 68.7 mm | Diameter of shaft abutment |
| Da | min. 70 mm | Diameter of housing abutment |
| Da | max. 80.4 mm | Abutment diameter housing |
| ra | max. 1 mm | Radius of fillet |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 190 kN |
| Basic static load rating | C0 | 335 kN |
| Fatigue load limit | Pu | 39 kN |
| Misalignment factor | k1 | 0.108 |
| Internal clearance factor | k2 | 0.096 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P5, tapered bore 1:12,
tapered bore 1:30 - Radial internal clearance: cylindrical bore, tapered bore
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

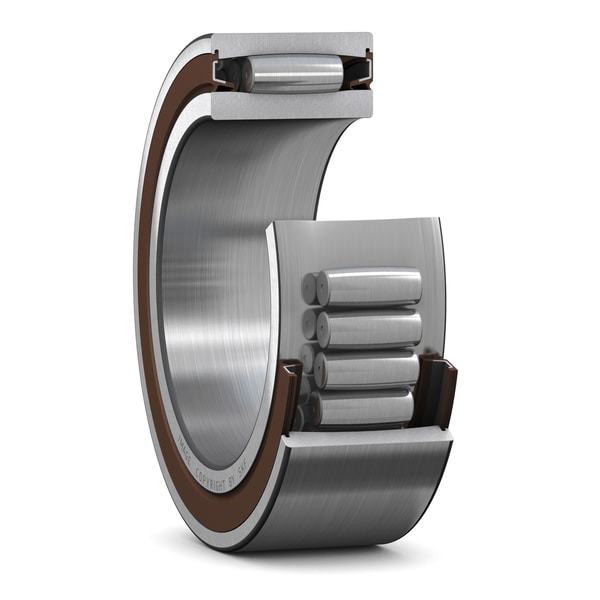

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This bearing has a lower speed rating and is sealed to minimize the need for lubrication and extend service life.
- Accommodate misalignment and axial displacement within the bearing
- High radial load carrying capacity
- Provide frictionless axial movement
- Long bearing system life
- Sealed for increased reliability
