Description

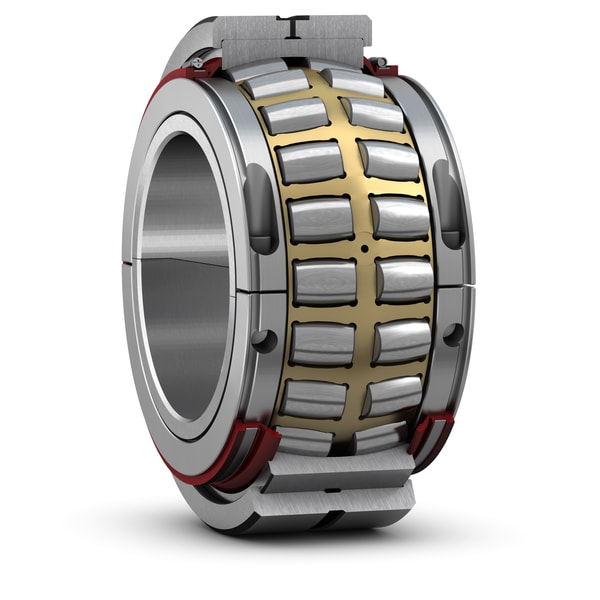

Split spherical roller bearings are completely split to the shaft for easy maintenance and simplification of shaft systems. Generally, they can dimensionally replace non-split spherical roller bearings mounted on adapter sleeves, re-using the existing housings for minimum disturbance of machine alignment. The incorporation of seals into the bearing offers an additional barrier to contaminant ingress, providing exceptional sealing capability in combination with the housing seals.
- Split-to-shaft for easy maintenance
- Replace non-split bearings mounted on adapter sleeves
- Mount in standard housings with minimum disturbance of machine alignment
- Provide exceptional sealing capability in conjunction with housing seals
Overview
Dimensions
| Bore diameter | 200 mm |
| Outside diameter | 400 mm |
| Width | 166 mm |
Performance
| Basic dynamic load rating | 1 215 kN |
| Basic static load rating | 1 830 kN |
| Limiting speed | 210 r/min |
Properties
| Number of rows | 2 |
| Bore type | Cylindrical |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Relubrication feature | With |
Logistics
| Product net weight | 79 kg |
| eClass code | 23-05-16-90 |
| UNSPSC code | 31171519 |
