COP.222S700-2SRS

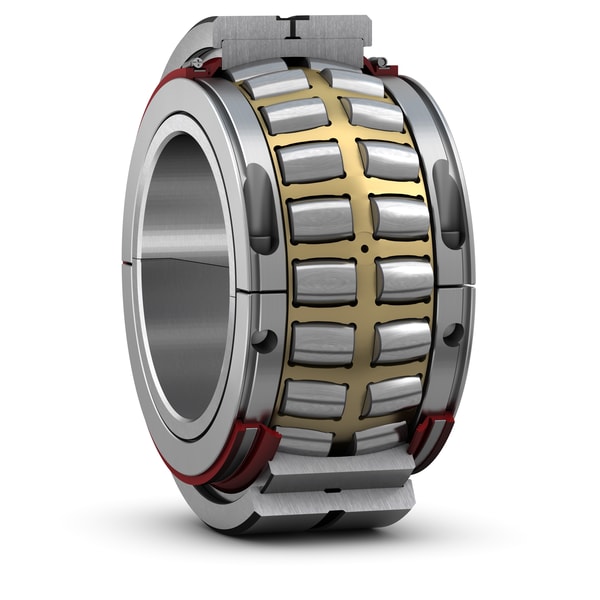

Product type: Cooper split spherical roller bearing, sealed

Split spherical roller bearings are completely split to the shaft for easy maintenance and simplification of shaft systems. Generally, they can dimensionally replace non-split spherical roller bearings mounted on adapter sleeves, re-using the existing housings for minimum disturbance of machine alignment. The incorporation of seals into the bearing offers an additional barrier to contaminant ingress, providing exceptional sealing capability in combination with the housing seals.

  • Split-to-shaft for easy maintenance
  • Replace non-split bearings mounted on adapter sleeves
  • Mount in standard housings with minimum disturbance of machine alignment
  • Provide exceptional sealing capability in conjunction with housing seals

sales@nr-bearing.com Whatsapp

Description

Overview



Dimensions

Bore diameter 177.8 mm
Outside diameter 340 mm
Width 154 mm

Performance

Basic dynamic load rating 940 kN
Basic static load rating 1 400 kN
Limiting speed 235 r/min

Properties

Number of rows 2
Bore type Cylindrical
Sealing Seal on both sides
Sealing type Contact
Relubrication feature With

Logistics

Product net weight 55 kg
eClass code 23-05-16-90
UNSPSC code 31171519

Split spherical roller bearings are completely split to the shaft for easy maintenance and simplification of shaft systems. Generally, they can dimensionally replace non-split spherical roller bearings mounted on adapter sleeves, re-using the existing housings for minimum disturbance of machine alignment. The incorporation of seals into the bearing offers an additional barrier to contaminant ingress, providing exceptional sealing capability in combination with the housing seals.

  • Split-to-shaft for easy maintenance
  • Replace non-split bearings mounted on adapter sleeves
  • Mount in standard housings with minimum disturbance of machine alignment
  • Provide exceptional sealing capability in conjunction with housing seals
