Description
Dimensions
| d | 280 mm | Bore diameter |
|---|---|---|
| D | 380 mm | Outside diameter |
| B | 100 mm | Width |
| d1 | ≈ 317 mm | Shoulder diameter inner ring |
| D1 | ≈ 343 mm | Shoulder diameter outer ring |
| b1 | 9.4 mm | Width annular lubrication groove outer ring |
| K | 5 mm | Diameter lubrication hole (outer ring) |
| s | max. 6 mm | Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 | min. 2.1 mm | Chamfer dimension (open bearings) |
| r3,4 | min. 2.1 mm | Chamfer dimension |
Abutment dimensions
| da | min. 293 mm | Abutment diameter shaft |
|---|---|---|
| das | 312 mm | Abutment diameter shaft |
| Da | max. 368 mm | Abutment diameter housing |
| ra | max. 2 mm | Fillet radius |
| rb | max. 2 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 1 210 kN |
|---|---|---|
| Basic static load rating | C0 | 2 700 kN |
| Fatigue load limit | Pu | 255 kN |
| Reference speed | 700 r/min | |
| Limiting speed | 900 r/min | |
| Minimum load factor | kr | 0.25 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal
- Radial internal clearance: table
- Axial internal clearance
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

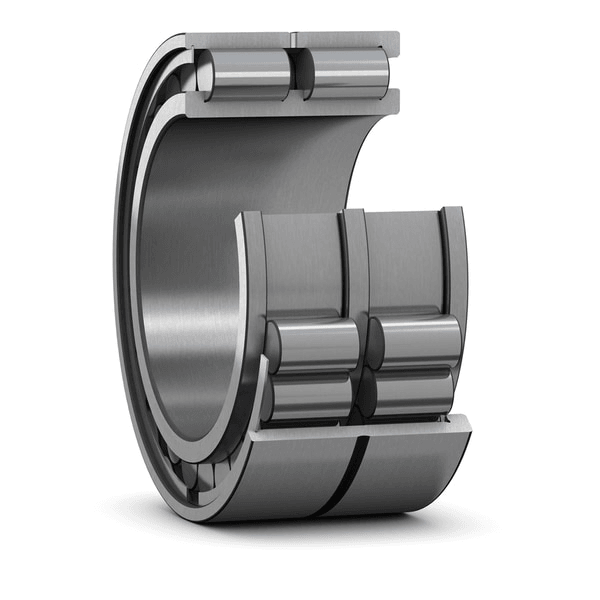

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the inner ring and one flange on the outer ring, NNCF design bearings can accommodate limited axial displacement in one direction. A retaining ring in the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.
- Very high radial load carrying capacity
- High radial stiffness
- Long service life
- Locate the shaft axially in one direction
- Relubrication feature
