Description
Dimensions
| d | 220 mm | Bore diameter |
|---|---|---|
| D | 300 mm | Outside diameter |
| B | 95 mm | Width |
| C | 94 mm | Outer ring width (sealed bearing) |
| d1 | ≈ 250 mm | Shoulder diameter inner ring |
| D3 | 295 mm | Snap ring groove diameter at outer ring |
| C1 | 83.2 mm | Distance between two snap ring grooves of the outer ring outside surface |
| + 0.2 mm | Tolerance for distance C1 | |
| C2 | 5.4 mm | Distance outer ring side face - snap ring groove (sealed bearing) |
| b | 5.2 mm | Width snap ring groove outer ring |
| b1 | 7.86 mm | Width annular lubrication groove outer ring |
| K | 6 mm | Diameter lubrication hole (outer ring) |
| r | min. 2 mm | Chamfer dimension (sealed bearing) |
| r3,4 | min. 1 mm | Chamfer dimension |
Abutment dimensions
| da | min. 227 mm | Abutment diameter shaft |
|---|---|---|
| das | 246 mm | Abutment diameter shaft |
| Ca1 | 75 mm | Abutment width applying for SW snap rings (sealed brg.) |
| – 0.2 mm | Tolerance for abutment Ca (SW snap rings) | |
| Ca2 | 73 mm | Abutment width applying for DIN 471 snap rings (sealed brg.) |
| – 0.2 mm | Tolerance for abutment Ca (DIN 471 snap rings) | |
| ra | max. 1.5 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 880 kN |
|---|---|---|
| Basic static load rating | C0 | 1 860 kN |
| Fatigue load limit | Pu | 186 kN |
| Limiting speed | 380 r/min | |
| Minimum load factor | kr | 0.4 |
Associated products
| Snap ring Seeger | SW 300 |
| Snap ring in accordance with DIN 471 | 300x5 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal
- Radial internal clearance: table
- Axial internal clearance
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

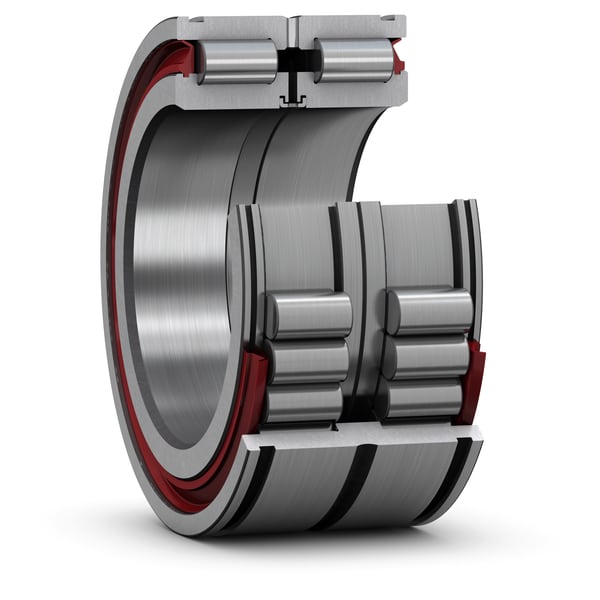

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.
- Very high radial load carrying capacity
- High radial stiffness
- Long service life
- Locate the shaft axially in both directions
- Sealed for increased reliability, with relubrication feature
