Description
Dimensions
| d | 100 mm | Bore diameter |
|---|---|---|
| D | 215 mm | Outside diameter |
| B | 73 mm | Width |
| d1 | ≈ 137 mm | Shoulder diameter inner ring |
| D1 | ≈ 175 mm | Shoulder diameter outer ring |
| F | 122.8 mm | Raceway diameter inner ring |
| s | max. 4 mm | Permissible axial displacement from the normal position of one bearing ring relative to the other |
| r1,2 | min. 3 mm | Chamfer dimension |
Abutment dimensions
| da | min. 114 mm | Abutment diameter shaft |
|---|---|---|
| das | 128 mm | Abutment diameter shaft |
| db | max. 119 mm | Abutment diameter shaft |
| Da | max. 201 mm | Abutment diameter housing |
| ra | max. 2.5 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 704 kN |
|---|---|---|
| Basic static load rating | C0 | 900 kN |
| Fatigue load limit | Pu | 106 kN |
| Reference speed | 1 200 r/min | |
| Limiting speed | 1 500 r/min | |
| Calculation factor | kr | 0.35 |
| Limiting value | e | 0.3 |
| Calculation factor | Y | 0.4 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal
- Radial internal clearance: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

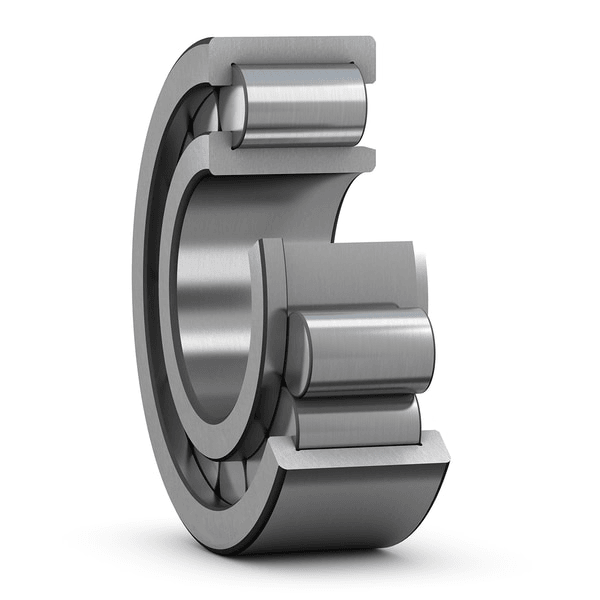

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the outer ring and one on the inner ring, NJG design bearings can accommodate axial displacement in one direction. A self-retaining roller complement enables the bearing components to be separated, which facilitates mounting and enables the bearing components to be interchanged.
- Very high radial load carrying capacity
- High radial stiffness
- Long service life
- Locate the shaft axially in one direction
- Separable design
