Description
| Design variant/feature | BC4.10/W33WI |
| Bore type | Cylindrical |
Dimensions
| d | 559.84 mm | Bore diameter |
|---|---|---|
| D | 920 mm | Outside diameter |
| B | 710 mm | Total bearing width over inner ring(s) |
| C | 710 mm | Total bearing width over outer ring(s) |
| D1 | ≈ 804.7 mm | Outer ring shoulder diameter |
| F | 652.5 mm | Raceway diameter inner ring |
| b | 22.3 mm | Width of annular groove |
| K | 12 mm | Diameter lubrication hole (outer ring) |
| r1,2 | min. 20 mm | Corner radius/chamfer inner ring |
| α | 20 ° | Chamfer angle inner ring |
| r3,4 | min. 4 mm | Chamfer dimension on the outer ring |
Calculation data
| Basic dynamic load rating | C | 20 100 kN |
|---|---|---|
| Basic static load rating | C0 | 45 500 kN |
| Fatigue load limit | Pu | 3 250 kN |
| Calculation factor | kr | 830 |
Tolerances and clearances
General bearing specifications
- Tolerances: P6, P5
- Radial internal clearance: cylindrical bore, tapered bore
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

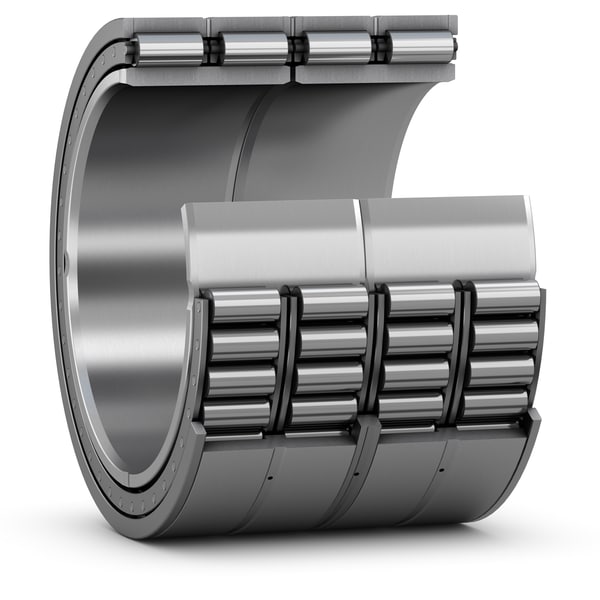

Four-row cylindrical roller bearings are designed to accommodate very heavy radial loads in combination with medium to high speeds. The NR assortment includes many designs and variants, such as bearings with a cage and full complement bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
- Exceptional high radial load carrying capacity
- Low friction
- Long service life
- Low cross-sectional height
