Description
Dimensions
| d | 160 mm | Bore diameter |
|---|---|---|
| D | 340 mm | Outside diameter |
| B | 68 mm | Width |
| D1 | ≈ 286 mm | Shoulder diameter of outer ring |
| F | 204 mm | Raceway diameter of inner ring |
| r1,2 | min. 4 mm | Chamfer dimension |
| r3,4 | min. 4 mm | Chamfer dimension |
| s | max. 4 mm | Permissible axial displacement |
Abutment dimensions
| da | min. 177 mm | Diameter of spacer sleeve |
|---|---|---|
| da | max. 199 mm | Diameter of spacer sleeve |
| db | min. 207 mm | Diameter of shaft abutment |
| Da | max. 321.9 mm | Diameter of housing abutment |
| ra | max. 3 mm | Radius of fillet |
| rb | max. 3 mm | Radius of fillet |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 1 000 kN |
| Basic static load rating | C0 | 1 080 kN |
| Fatigue load limit | Pu | 112 kN |
| Reference speed | 2 000 r/min | |
| Limiting speed | 3 600 r/min | |
| Minimum load factor | kr | 0.23 |
| Limiting value | e | 0.2 |
| Calculation factor | Y | 0.6 |
Associated products
| Angle ring | HJ 332 EC |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal (), P6, Normal (inch)
- Radial internal clearance: cylindrical bore, tapered bore
- Axial internal clearance: NUP, NJ + HJ
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

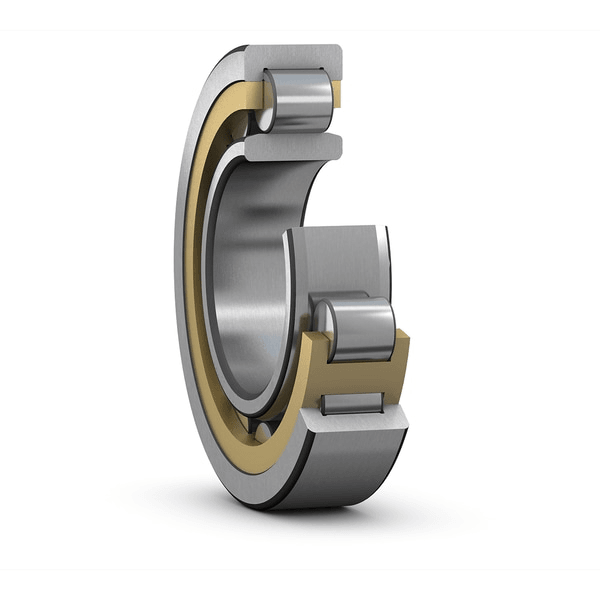

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
- High radial load carrying capacity
- Low friction
- Long service life
- Accommodate axial displacement in both directions
- Separable design
