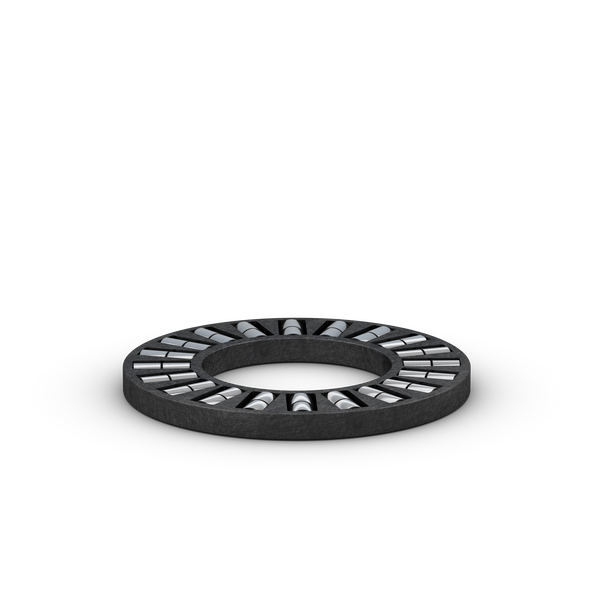

Description
Dimensions
| d | 65 mm | Bore diameter |
|---|---|---|
| D | 115 mm | Outside diameter |
| Dw | 9 mm | Diameter roller |
| Ea | 71 mm | Raceway diameter (min.) roller and cage thrust assembly |
| Eb | 113 mm | Raceway diameter (max.) roller and cage thrust assembly |
Calculation data
| Basic dynamic load rating | C | 153 kN |
|---|---|---|
| Basic static load rating | C0 | 640 kN |
| Fatigue load limit | Pu | 65.5 kN |
| Reference speed | 1 400 r/min | |
| Limiting speed | 2 800 r/min | |
| Minimum axial load factor | A | 0.0328 |
Associated products
| Shaft washer | WS 89313 |
| Housing washer | GS 89313 |
Tolerances and clearances
General bearing specifications
- Tolerances: table, table, values
Design considerations
- table
Bearing interfaces
- Seat tolerances for standard conditions
Single direction cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction. They must not be subjected to any radial load. The bearings provide a high degree of stiffness and require little axial space. To accommodate axial loads in both directions, a double direction bearing can be created by combining two cylindrical roller and cage thrust assemblies and two bearing washers with an intermediate washer.
- High axial load carrying capacity
- High stiffness
- Long service life
- Require little axial space
- Separable design
