6205-2RSF/GJN8
Products

6205-2RSF/GJN8

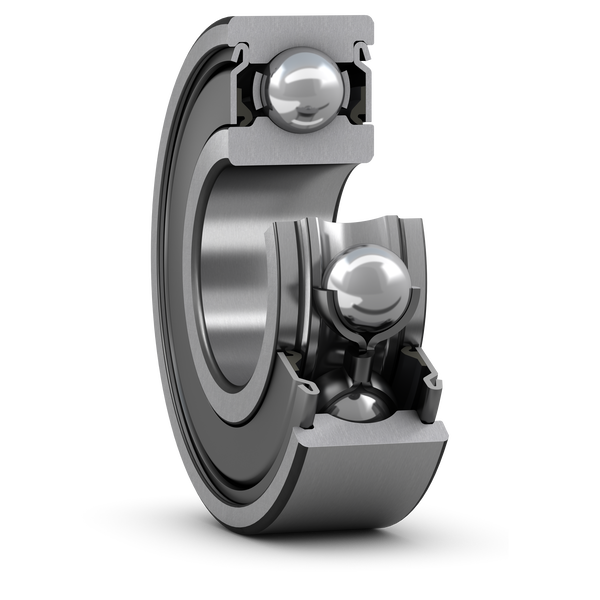

Product type: NR Deep groove ball bearing for highly contaminated environments

NR Deep groove ball bearings for highly contaminated environments are equipped with robust steel shields and strong rubber lips sealing against precision-ground counterfaces on the inner ring. The seals are designed to protect against fluid and solid contaminants. Variants with the designation suffix AG provide enhanced corrosion resistance of the seal.

  • Effective exclusion of fluid and solid contaminants
  • Simple, versatile, and robust design
  • Accommodate radial loads and axial loads in both directions
  • Require less maintenance in highly contaminated environments

sales@nr-bearing.com Whatsapp

Description

Overview

Dimensions

Bore diameter25 mm
Outside diameter52 mm
Width15 mm

Performance

Basic dynamic load rating14.8 kN
Basic static load rating7.8 kN
Limiting speed3 700 r/min
NR performance classNR Explorer

Properties

Filling slotsWithout
Number of rows1
Locating feature, bearing outer ringNone
Bore typeCylindrical
CageSheet metal
Matched arrangementNo
Radial internal clearanceCN
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWithout

Logistics

Product net weight0.136 kg
eClass code23-05-08-01
UNSPSC code31171504

NR Deep groove ball bearings for highly contaminated environments are equipped with robust steel shields and strong rubber lips sealing against precision-ground counterfaces on the inner ring. The seals are designed to protect against fluid and solid contaminants. Variants with the designation suffix AG provide enhanced corrosion resistance of the seal.

  • Effective exclusion of fluid and solid contaminants
  • Simple, versatile, and robust design
  • Accommodate radial loads and axial loads in both directions
  • Require less maintenance in highly contaminated environments
