Description
Dimensions
| d | 35 mm | Bore diameter of sleeve |
|---|---|---|
| D | 80 mm | Outside diameter |
| B1 | 46 mm | Width of sleeve |
| B | 33.9 mm | Width of inner ring |
| C | 21 mm | Width of outer ring |
| d1 | ≈ 51.8 mm | Outside diameter of inner ring |
| d3 | 58 mm | Outside diameter of lock nut |
| s1 | 27.15 mm | Distance from locking device side face to raceway centre |
| Value specified for s1 is approximate and before the sleeve is driven into the bearing bore (sleeve and inner ring bore at starting position). | ||
Calculation data
| Basic dynamic load rating | C | 30.7 kN |
|---|---|---|
| Basic static load rating | C0 | 19 kN |
| Fatigue load limit | Pu | 0.8 kN |
| Limiting speed | 4 800 r/min | |
| Calculation factor | f0 | 14 |
Mounting information
| Associated spanner | HN 8 | |
| Recommended tightening angle for lock nut | α | 105 ° |
Associated products
| Rubber seating ring | RIS 208 A |
| Adapter sleeve | H 2308 |
Tolerances and clearances
General bearing specifications
- Tolerances: table 1, table 2
- Radial internal clearance: Standard inner ring, Other bearings
Bearing interfaces
- Shaft tolerances

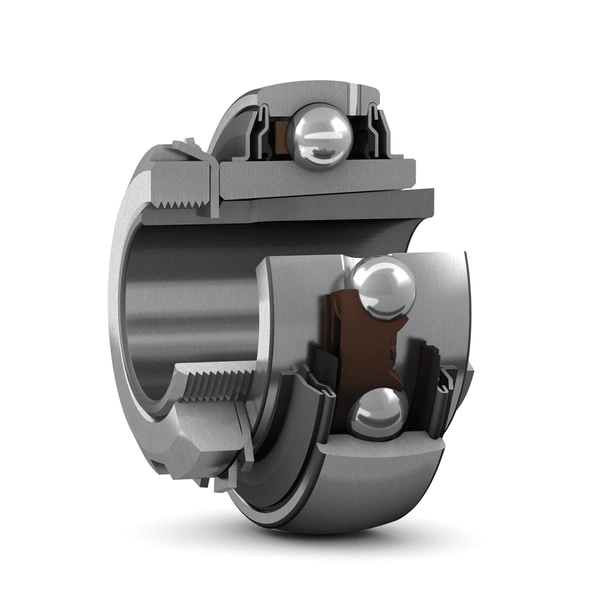

Insert bearings are based on sealed deep groove ball bearings. This variant, with a tapered bore, is suitable for applications with both constant and alternating directions of rotation. It is locked with an adapter sleeve, enabling quick and easy mounting onto the shaft. Adapter sleeve needs to be ordered separately.
- Quick and easy to mount onto the shaft
- Long service life
- Reduce noise and vibration levels
