Description
Dimensions
| d | 20 mm | Bore diameter |
|---|---|---|
| D | 47 mm | Outside diameter |
| D1 | 52.3 mm | Outside diameter rubber seating ring |
| B1 | 30.5 mm | Overall bearing width |
| B | 21 mm | Width of inner ring |
| C | 14 mm | Width of outer ring |
| C1 | 19 mm | Outer width rubber seating ring |
| d1 | ≈ 28.2 mm | Outside diameter of inner ring |
| d2 | 32.4 mm | Outside diameter of locking collar |
| d3 | 41.2 mm | Inner diameter rubber seating ring |
| B4 | 4.75 mm | Distance from side face to thread centre |
| r1,2 | min. 0.6 mm | Chamfer dimension of inner ring |
| r | min. 1 mm | Chamfer radius rubber seating ring |
| s1 | 23.5 mm | Distance from locking device side face to raceway centre |
Calculation data
| Basic dynamic load rating | C | 12.7 kN |
|---|---|---|
| Basic static load rating | C0 | 6.55 kN |
| Fatigue load limit | Pu | 0.28 kN |
| Limiting speed | 8 500 r/min | |
| Limiting speed with shaft tolerance h6 | ||
| Calculation factor | f0 | 13 |
Mounting information
| Set screw | G2 | M6x0.75 |
|---|---|---|
| Hexagonal key size for set screw | N | 3 mm |
| Recommended tightening torque for set screw | 4 N·m |
Included products
| Bearing | YET 204 |
| Rubber seating ring | RIS 204 |
Tolerances and clearances
General bearing specifications
- Tolerances: table 1, table 2
- Radial internal clearance: Standard inner ring, Other bearings
Bearing interfaces
- Shaft tolerances

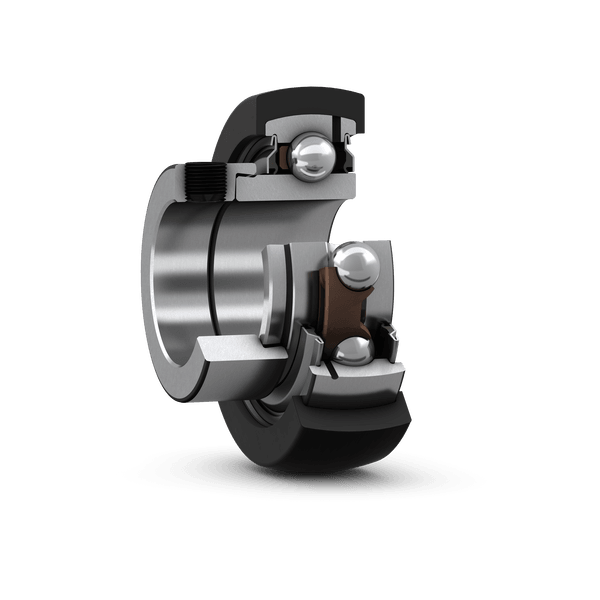

Insert bearings in the YET 2 series, supplied with already fitted rubber seating rings. Located between the bearing outer ring and housing bore, the rubber seating ring dampens vibration and noise and enables the bearings to be displaced slightly in their housings and to accommodate minor shaft expansion or misalignment.
- Quick and easy to mount onto the shaft
- Accommodate static initial misalignment
- Long service life
- Reduced noise and vibration levels
