Description
Dimensions
| d | 15 mm | Bore diameter |
|---|---|---|
| D | 40 mm | Outside diameter |
| B1 | 28.6 mm | Overall bearing width |
| B | 19.1 mm | Width of inner ring |
| C | 12 mm | Width of outer ring |
| d1 | ≈ 24.2 mm | Outside diameter of inner ring |
| d2 | 27.2 mm | Outside diameter of locking collar |
| B4 | 4.75 mm | Distance from side face to thread centre |
| r1,2 | min. 0.3 mm | Chamfer dimension of inner ring |
| s1 | 22.1 mm | Distance from locking device side face to raceway centre |
Calculation data
| Basic dynamic load rating | C | 9.56 kN |
|---|---|---|
| Basic static load rating | C0 | 4.75 kN |
| Fatigue load limit | Pu | 0.2 kN |
| Limiting speed | 9 500 r/min | |
| Limiting speed with shaft tolerance h6 | ||
| Calculation factor | f0 | 13 |
Mounting information
| Set screw | G2 | M6x0.75 |
|---|---|---|
| Hexagonal key size for set screw | N | 3 mm |
| Recommended tightening torque for set screw | 4 N·m |
Associated products
| Rubber seating ring | RIS 203 |
Tolerances and clearances
General bearing specifications
- Tolerances: table 1, table 2
- Radial internal clearance: Standard inner ring, Other bearings
Bearing interfaces
- Shaft tolerances

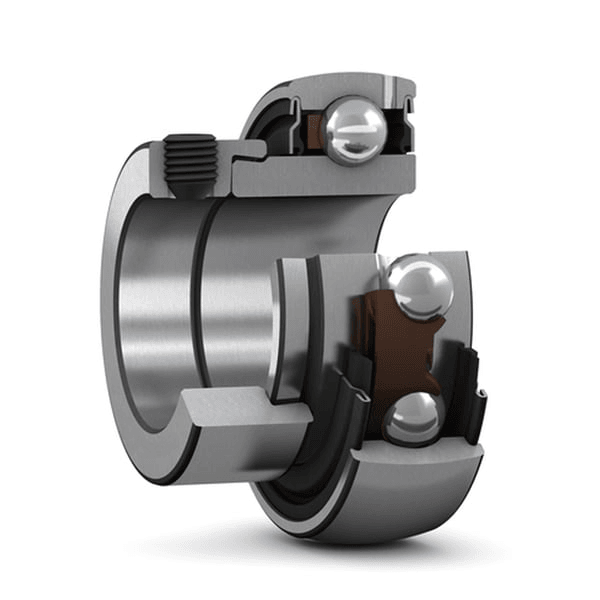

Insert bearings are based on sealed deep groove ball bearings. This variant is intended for use in applications where the direction of rotation is constant. It has a narrow inner ring extended on one side, with an eccentric locking collar, enabling quick and easy mounting onto the shaft.
- Designed for rotation in one direction
- Quick and easy to mount onto the shaft
- Long service life
- Reduce noise and vibration levels
