Description
Dimensions
| Fw | 390 mm | Diameter under rollers |
|---|---|---|
| D | 440 mm | Outside diameter |
| C | 80 mm | Width |
| r1,2 | min. 2.1 mm | Chamfer dimension outer ring |
Abutment dimensions
| Da | max. 429 mm | Diameter of housing abutment |
|---|---|---|
| ra | max. 2 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 627 kN |
|---|---|---|
| Basic static load rating | C0 | 2 040 kN |
| Fatigue load limit | Pu | 186 kN |
| Reference speed | 950 r/min | |
| Limiting speed | 1 100 r/min |
Associated seals
| Available on request | Radial shaft seal |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5, ISO - F6 (Fw)
- Radial internal clearance: table
Design considerations
- Housing tolerances: table
- Shaft tolerances: Operating clearance

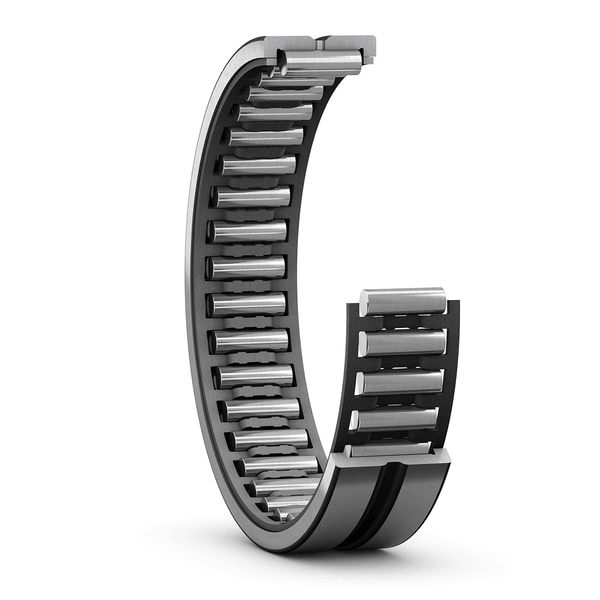

Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
- High radial load carrying capacity
- High stiffness
- Low cross-sectional height
- Accommodate axial displacement in both directions
