Description
Dimensions
| Fw | 4 mm | Diameter under rollers |
|---|---|---|
| D | 8 mm | Outside diameter |
| C | 8 mm | Width |
| r | min. 0.3 mm | Chamfer dimension drawn cup (outer ring) |
Calculation data
| Basic dynamic load rating | C | 1.76 kN |
|---|---|---|
| Basic static load rating | C0 | 1.37 kN |
| Fatigue load limit | Pu | 0.14 kN |
| Reference speed | 22 000 r/min | |
| Limiting speed | 26 000 r/min |
Associated products
| Radial shaft seal with a low cross-sectional height, single lip | G 4x8x2 S |
Tolerances and clearances
General bearing specifications
- Tolerances: table
Design considerations
- Shaft and housing tolerances: table

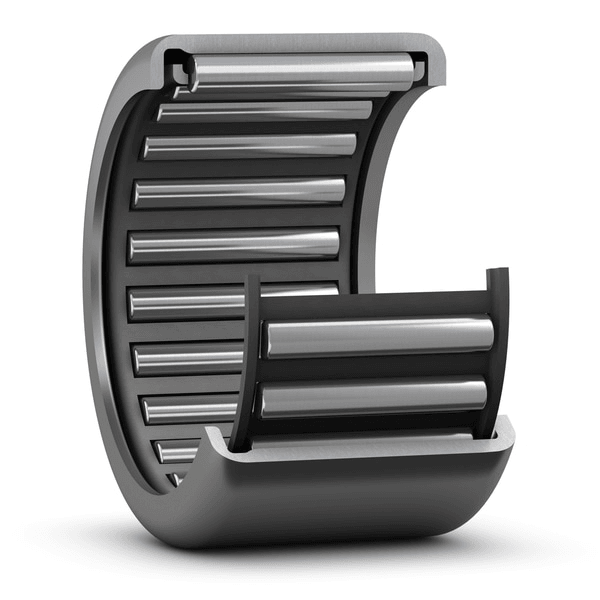

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.
- High radial load carrying capacity
- High stiffness
- Very low cross-sectional height
