Description
Dimensions
| d | 160 mm | Bore diameter |
|---|---|---|
| D | 200 mm | Outside diameter |
| Dw | 5 mm | Diameter roller |
| Ea | min. 166 mm | Raceway diameter (min.) roller and cage thrust assembly |
| Eb | max. 197 mm | Raceway diameter (max.) roller and cage thrust assembly |
Calculation data
| Basic dynamic load rating | C | 125 kN |
|---|---|---|
| Basic static load rating | C0 | 1 000 kN |
| Fatigue load limit | Pu | 106 kN |
| Reference speed | 950 r/min | |
| Limiting speed | 1 900 r/min |
Associated products
| Universal washer | LS 160200 |
| Thin universal washer | AS 160200 |
| Shaft washer | WS 81132 |
| Housing washer | GS 81132 |
Tolerances and clearances
General bearing specifications
- Tolerances: table, values
Design considerations
- table
Bearing interfaces
- Seat tolerances for standard conditions

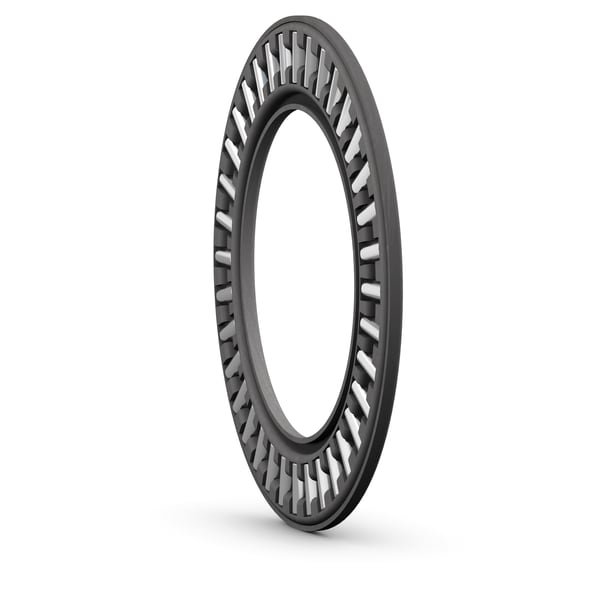

Needle roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer. The bearings can also be combined with bearing washers to create complete bearings.
- High axial load carrying capacity
- High stiffness
- Long service life
- Require minimal axial space
- Can be combined with bearing washers
