Description
| Bore type | Tapered 1:12 |
Dimensions
| d | 50 mm | Bore diameter |
|---|---|---|
| D | 110 mm | Outside diameter |
| B | 40 mm | Width |
| d2 | ≈ 62.9 mm | Recess diameter inner ring |
| D2 | ≈ 95.2 mm | Recess diameter outer ring |
| r1,2 | min. 2 mm | Chamfer dimension |
Abutment dimensions
| Da | max. 99 mm | Abutment diameter housing |
|---|---|---|
| ra | max. 2 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 43.6 kN |
|---|---|---|
| Basic static load rating | C0 | 14 kN |
| Fatigue load limit | Pu | 0.72 kN |
| Reference speed | 11 000 r/min | |
| Limiting speed | 4 000 r/min | |
| Permissible angular misalignment | α | 1.5 ° |
| Calculation factor | kr | 0.05 |
| Limiting value | e | 0.24 |
| Calculation factor | Y0 | 2.8 |
| Calculation factor | Y1 | 2.6 |
| Calculation factor | Y2 | 4.1 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, JS7
- Radial internal clearance: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fits

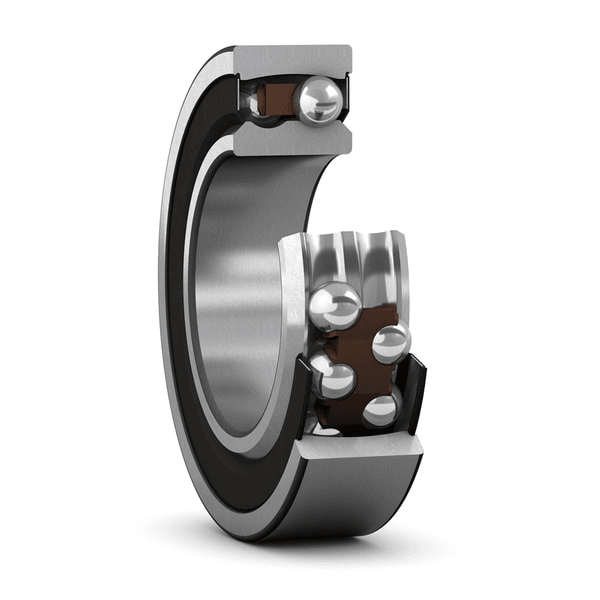

Self-aligning ball bearings, with a tapered bore and seals on both sides, have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing. The tapered bore facilitates ease of mounting via adapter/withdrawal sleeves. The integral sealing can prolong bearing service life by keeping lubricant in the bearings and contaminants out.
- Ease of mounting via adapter/withdrawal sleeves
- Accommodate static and dynamic misalignment
- Excellent high-speed and light load performance
- Low friction
- Integral sealing results in reduced maintenance requirements and prolonged bearing service life
