Description
| Bore type | Cylindrical |
Dimensions
| d | 100 mm | Bore diameter |
|---|---|---|
| D | 215 mm | Outside diameter |
| B | 73 mm | Width |
| d1 | ≈ 135.3 mm | Shoulder diameter inner ring |
| D1 | ≈ 183.3 mm | Shoulder diameter outer ring |
| r1,2 | min. 3 mm | Chamfer dimension |
Abutment dimensions
| da | min. 114 mm | Abutment diameter shaft |
|---|---|---|
| Da | max. 201 mm | Abutment diameter housing |
| ra | max. 3 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 190 kN |
|---|---|---|
| Basic static load rating | C0 | 80 kN |
| Fatigue load limit | Pu | 3.25 kN |
| Reference speed | 5 600 r/min | |
| Limiting speed | 4 000 r/min | |
| Permissible angular misalignment | α | 3 ° |
| Calculation factor | kr | 0.05 |
| Limiting value | e | 0.37 |
| Calculation factor | Y0 | 1.8 |
| Calculation factor | Y1 | 1.7 |
| Calculation factor | Y2 | 2.6 |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, JS7
- Radial internal clearance: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fits

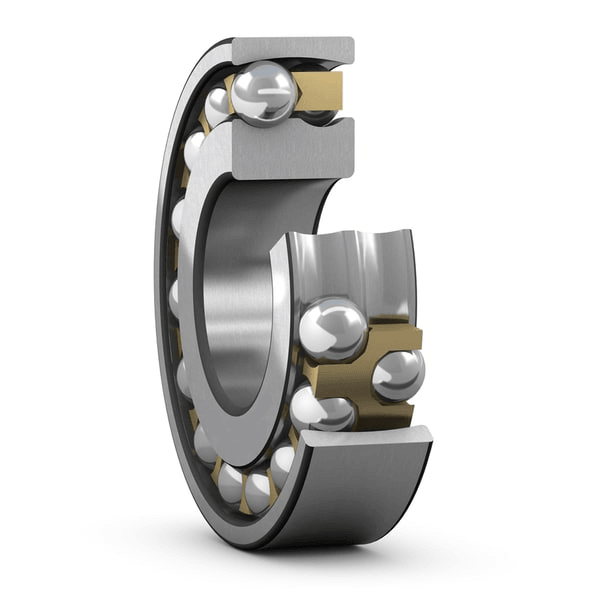

Self-aligning ball bearings have two rows of balls, a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. They are insensitive to angular misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection.
- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
