Description
| Bore type | Cylindrical |
Dimensions
| d | 260 mm | Bore diameter |
|---|---|---|
| tΔdmp | -0.035 – 0.0 mm | Deviation limits of mid-range bore diameter |
| D | 440 mm | Outside diameter |
| tΔDmp | -0.045 – 0.0 mm | Deviation limits of mid-range outside diameter |
| B | 144 mm | Width |
| tΔBs | -0.1 – 0.0 mm | Deviation limits of ring width |
| d2 | ≈ 293 mm | Shoulder diameter of inner ring |
| D1 | ≈ 398 mm | Shoulder/recess diameter of outer ring |
| b | 16.7 mm | Width of lubrication groove |
| K | 9 mm | Diameter of lubrication hole |
| r1,2 | min. 4 mm | Chamfer dimension |
| Normal | ISO tolerance class for dimensions |
Abutment dimensions
| da | min. 277 mm | Diameter of shaft abutment |
|---|---|---|
| da | max. 293 mm | Diameter of shaft abutment |
| Da | max. 423 mm | Diameter of housing abutment |
| ra | max. 3 mm | Radius of fillet |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 2 668 kN |
| Basic static load rating | C0 | 3 900 kN |
| Fatigue load limit | Pu | 290 kN |
| Limiting speed | 320 r/min | |
| Limiting value | e | 0.3 |
| Calculation factor | Y1 | 2.3 |
| Calculation factor | Y2 | 3.4 |
| Calculation factor | Y0 | 2.2 |
Tolerances of run-out
| Range of section height at inner ring of assembled bearing | tKia | 13 µm |
|---|---|---|
| Maximum run-out of inner ring side face to the bore | tSd | 13 µm |
| Range of section height at outer ring of assembled bearing | tKea | 23 µm |
| Perpendicularity of outer ring outside surface | tSD | 7.5 µm |
| ISO tolerance class for geoal tolerances | P5 |
Radial internal clearance
| Minimum initial clearance | 170 µm |
| Maximum initial clearance | 260 µm |
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5,
tapered bore 1:12, tapered bore 1:30 - Radial internal clearance: cylindrical bore, tapered bore
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

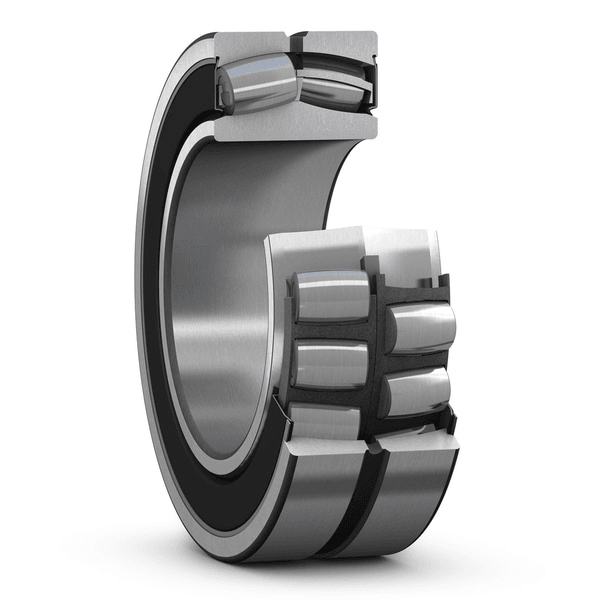

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.
- Accommodate misalignment
- High load carrying capacity
- Sealed for increased reliability, with relubrication features
- Low friction and long service life
- Increased wear resistance
