Description
| Bore type | Tapered 1:12 |
Dimensions
| d | 90 mm | Bore diameter |
|---|---|---|
| tΔdmp | 0.0 – 0.035 mm | Deviation limits of mid-range bore diameter |
| tΔSL | 0.0 – 0.035 mm | Deviation limits of tapered slope |
| D | 190 mm | Outside diameter |
| tΔDmp | -0.03 – 0.0 mm | Deviation limits of mid-range outside diameter |
| B | 64 mm | Width |
| tΔBs | -0.08 – 0.0 mm | Deviation limits of ring width |
| d2 | ≈ 113 mm | Shoulder diameter of inner ring |
| D1 | ≈ 161 mm | Shoulder/recess diameter of outer ring |
| b | 11.1 mm | Width of lubrication groove |
| K | 6 mm | Diameter of lubrication hole |
| r1,2 | min. 3 mm | Chamfer dimension |
| Normal, bore to P5 and outside diameter P6 | ISO tolerance class for dimensions |
Abutment dimensions
| Da | max. 176 mm | Diameter of housing abutment |
|---|---|---|
| ra | max. 2.5 mm | Radius of fillet |
Calculation data
| NR performance class | NR Explorer | |
| Basic dynamic load rating | C | 637 kN |
| Basic static load rating | C0 | 695 kN |
| Fatigue load limit | Pu | 67 kN |
| Reference speed | 2 600 r/min | |
| Limiting speed | 3 600 r/min | |
| Limiting value | e | 0.33 |
| Calculation factor | Y1 | 2 |
| Calculation factor | Y2 | 3 |
| Calculation factor | Y0 | 2 |
| Permissible rotational acceleration for oil lubrication | 667 m/s² | |
| Permissible linear acceleration for oil lubrication | 206 m/s² |
Tolerances of run-out
| Range of section height at inner ring of assembled bearing | tKia | 6 µm |
|---|---|---|
| Maximum run-out of inner ring side face to the bore | tSd | 9 µm |
| Range of section height at outer ring of assembled bearing | tKea | 15 µm |
| Perpendicularity of outer ring outside surface | tSD | 5.5 µm |
| ISO tolerance class for geoal tolerances | P5 |
Radial internal clearance
| Minimum initial clearance | 140 µm |
| Maximum initial clearance | 180 µm |
Mounting information
| Recommended tightening angle for lock nut | α | 150 ° |
|---|
Tolerances and clearances
General bearing specifications
- Tolerances: Normal, P6, P5,
tapered bore 1:12, tapered bore 1:30 - Radial internal clearance: cylindrical bore, tapered bore
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

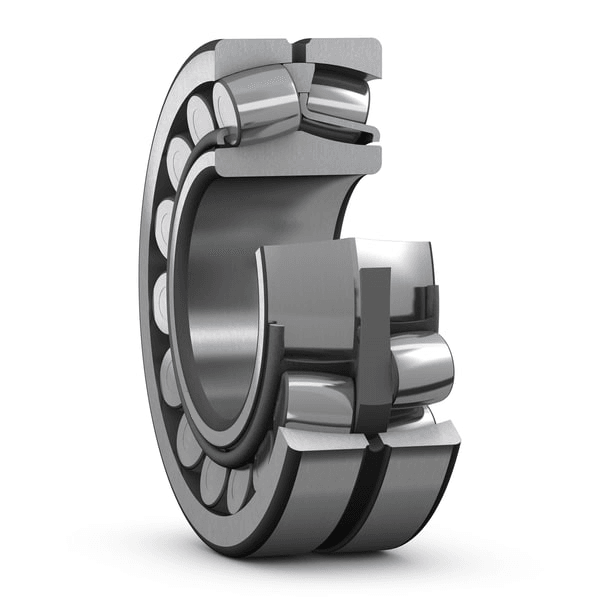

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This bearing design offers excellent performance in many types of vibrating machinery. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
- Accommodate misalignment
- High load carrying capacity
- Accommodate very high vibration levels
- Low friction and long service life
- Increased wear resistance
