Description
Dimensions
| d | 850 mm | Bore diameter |
|---|---|---|
| D | 1 440 mm | Outside diameter |
| H | 354 mm | Height |
| d1 | ≈ 1 315 mm | Outside diameter of shaft washer end side face |
| D1 | ≈ 1 077 mm | Shoulder diameter outer ring |
| B | 142 mm | Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a machined cage) |
| B1 | 342 mm | Height shaft washer + cage |
| C | 172 mm | Height housing washer |
| s | 507 mm | Distance from shaft washer end side face to pressure point |
| r1,2 | min. 15 mm | Chamfer dimension shaft washer |
Abutment dimensions
| da | min. 1 160 mm | Diameter of shaft abutment |
|---|---|---|
| Da | max. 1 270 mm | Diameter of housing abutment |
| ra | max. 12 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 23 900 kN |
|---|---|---|
| Basic static load rating | C0 | 108 000 kN |
| Fatigue load limit | Pu | 7 100 kN |
| Reference speed | 170 r/min | |
| Limiting speed | 340 r/min | |
| Minimum axial load factor | A | 1 100 |
Tolerances and clearances
General bearing specifications
- Tolerances: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

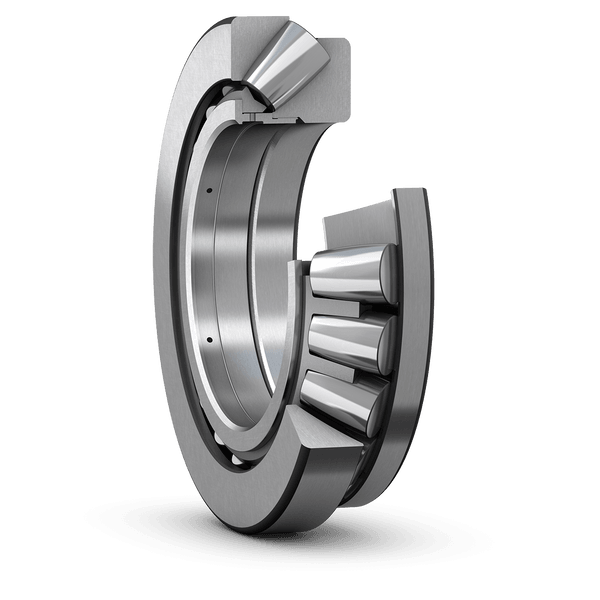

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
- High load carrying capacity
- Can accommodate combined loads
- Allow misalignment or create very stiff bearing arrangements
- Long service life and low friction
- Separable design
