Description
Dimensions
| d | 260 mm | Bore diameter |
|---|---|---|
| D | 480 mm | Outside diameter |
| H | 132 mm | Height |
| d1 | ≈ 427 mm | Outside diameter of shaft washer end side face |
| D1 | ≈ 346 mm | Shoulder diameter outer ring |
| B | 86 mm | Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage) |
| B1 | 119 mm | Height shaft washer + cage |
| C | 63 mm | Height housing washer |
| s | 154 mm | Distance from shaft washer end side face to pressure point |
| r1,2 | min. 6 mm | Chamfer dimension shaft washer |
Abutment dimensions
| da | min. 365 mm | Diameter of shaft abutment |
|---|---|---|
| db1 | max. 278 mm | Abutment diameter of spacer ring |
| db2 | max. 296 mm | Outside diameter of spacer ring |
| Da | max. 412 mm | Diameter of housing abutment |
| ra | max. 5 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 4 050 kN |
|---|---|---|
| Basic static load rating | C0 | 12 900 kN |
| Fatigue load limit | Pu | 1 080 kN |
| Reference speed | 750 r/min | |
| Limiting speed | 1 300 r/min | |
| Minimum axial load factor | A | 16 |
Tolerances and clearances
General bearing specifications
- Tolerances: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

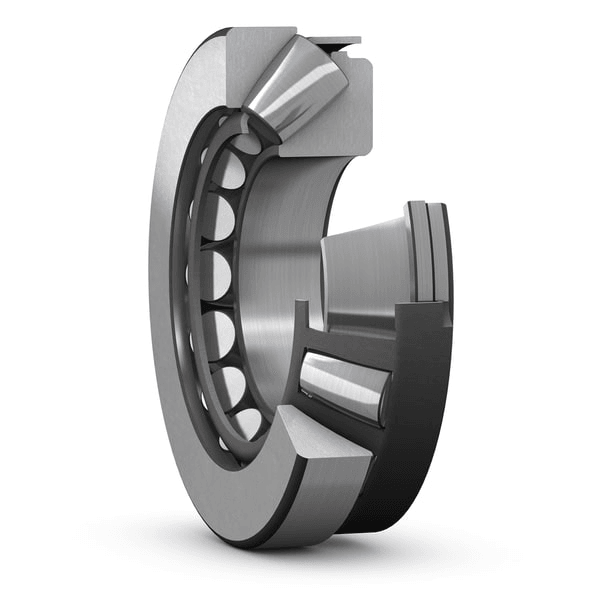

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
- High load carrying capacity
- Can accommodate combined loads
- Allow misalignment or create very stiff bearing arrangements
- Long service life and low friction
- Separable design
