Description
Dimensions
| d | 70 mm | Bore diameter |
|---|---|---|
| D | 150 mm | Outside diameter |
| H | 48 mm | Height |
| d1 | ≈ 129 mm | Outside diameter of shaft washer end side face |
| D1 | ≈ 99 mm | Shoulder diameter outer ring |
| B | 31 mm | Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage) |
| B1 | 41 mm | Height shaft washer + cage |
| C | 23.8 mm | Height housing washer |
| s | 44.8 mm | Distance from shaft washer end side face to pressure point |
| r1,2 | min. 2 mm | Chamfer dimension shaft washer |
Abutment dimensions
| da | min. 105 mm | Diameter of shaft abutment |
|---|---|---|
| db1 | max. 77.5 mm | Abutment diameter of spacer ring |
| db2 | max. 77.5 mm | Outside diameter of spacer ring |
| Da | max. 125 mm | Diameter of housing abutment |
| ra | max. 2 mm | Fillet radius |
Calculation data
| Basic dynamic load rating | C | 520 kN |
|---|---|---|
| Basic static load rating | C0 | 1 250 kN |
| Fatigue load limit | Pu | 153 kN |
| Reference speed | 2 400 r/min | |
| Limiting speed | 4 300 r/min | |
| Minimum axial load factor | A | 0.15 |
Tolerances and clearances
General bearing specifications
- Tolerances: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

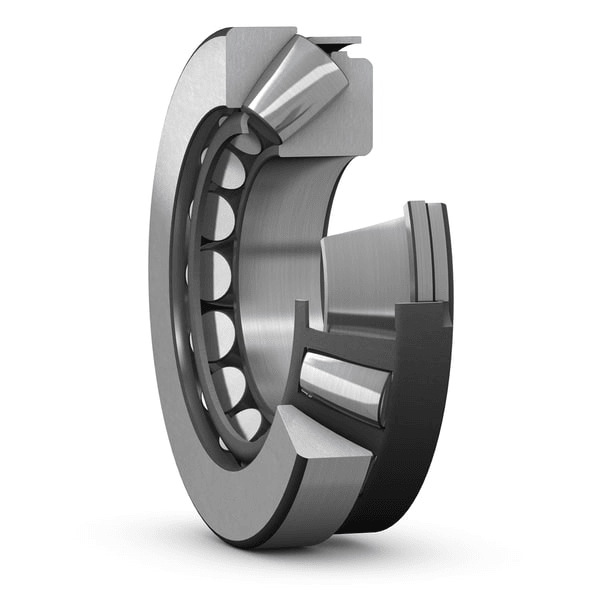

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
- High load carrying capacity
- Can accommodate combined loads
- Allow misalignment or create very stiff bearing arrangements
- Long service life and low friction
- Separable design
