Description
| Design variant/feature | TQO.1 |
| Bore type | Cylindrical |
Dimensions
| d | 1 001 mm | Bore diameter |
|---|---|---|
| D | 1 360 mm | Outside diameter |
| B | 800 mm | Total bearing width over inner rings |
| T | 800 mm | Total bearing width over outer rings |
| d1 | ≈ 1 070 mm | Abutment diameter shaft |
| D1 | ≈ 1 238 mm | Abutment diameter housing |
| r1,2 | min. 12 mm | Chamfer dimension inner ring |
| r3,4 | min. 3 mm | Outer ring radius (chamfer) |
Calculation data
| Basic dynamic load rating | C | 27 500 kN |
|---|---|---|
| Basic static load rating | C0 | 81 500 kN |
| Fatigue load limit | Pu | 4 750 kN |
| Comparative radial load rating | CF | 7 350 kN |
| Comparative axial load rating | CFa | 1 149 kN |
| Thrust factor | K | 1.81 |
| Limiting value | e | 0.33 |
| Calculation factor | Y1 | 2 |
| Calculation factor | Y2 | 3 |
| Calculation factor | Y0 | 2 |
Tolerances and clearances
General bearing specifications
- Tolerances: bearings (Normal and CL7C), inch bearings
- Internal clearance
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

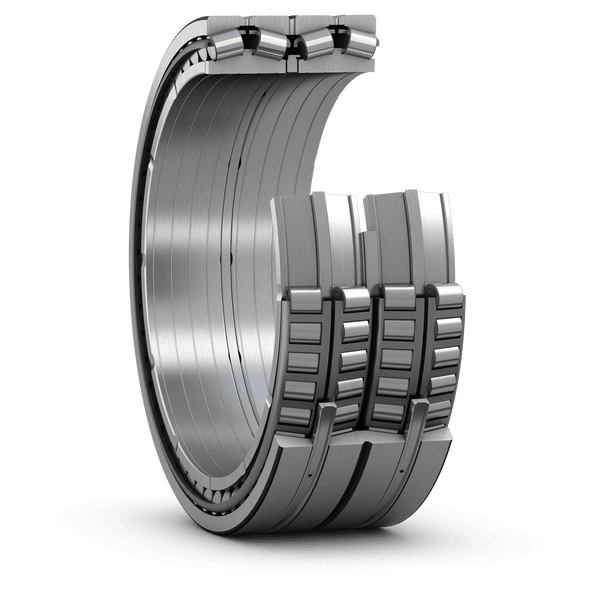

Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. NR manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
- Very high radial load carrying capacity
- Accommodate axial loads in both directions
- Axial space-saving solution for roll necks
- Low friction
- Long service life
