Description
| Design variant/feature | TQO/GWI |
| Bore type | Cylindrical with helical groove |
Dimensions
| d | 360 mm | Bore diameter |
|---|---|---|
| D | 510 mm | Outside diameter |
| B | 380 mm | Total bearing width over inner rings |
| T | 380 mm | Total bearing width over outer rings |
| d1 | ≈ 393 mm | Abutment diameter shaft |
| D1 | ≈ 454 mm | Abutment diameter housing |
| r1,2 | min. 2 mm | Chamfer dimension inner ring |
| r3,4 | min. 2 mm | Outer ring radius (chamfer) |
Calculation data
| Basic dynamic load rating | C | 5 610 kN |
|---|---|---|
| Basic static load rating | C0 | 14 300 kN |
| Fatigue load limit | Pu | 1 120 kN |
| Comparative radial load rating | CF | 1 500 kN |
| Comparative axial load rating | CFa | 238 kN |
| Thrust factor | K | 1.81 |
| Limiting value | e | 0.33 |
| Calculation factor | Y1 | 2 |
| Calculation factor | Y2 | 3 |
| Calculation factor | Y0 | 2 |
Tolerances and clearances
General bearing specifications
- Tolerances: bearings (Normal and CL7C), inch bearings
- Internal clearance
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

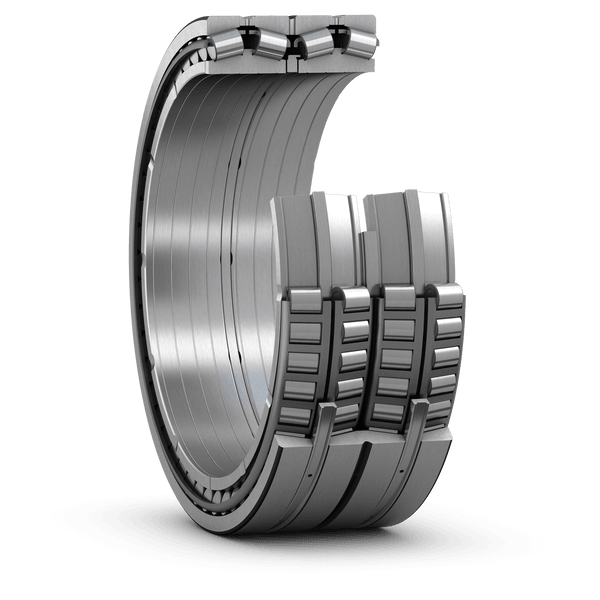

Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. NR manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
- Very high radial load carrying capacity
- Accommodate axial loads in both directions
- Axial space-saving solution for roll necks
- Low friction
- Long service life
