Description
Dimensions
| d | 558.8 mm | Bore diameter |
|---|---|---|
| D | 609.6 mm | Outside diameter |
| H | 25.4 mm | Radial cross section |
| B | 25.4 mm | Width |
| d1 | ≈ 577.647 mm | Shoulder diameter inner ring |
| d2 | ≈ 572.872 mm | Recess diameter inner ring |
| D1 | ≈ 590.753 mm | Shoulder diameter outer ring |
| D2 | ≈ 599.491 mm | Recess diameter outer ring |
| 12.7 mm | Ball diameter | |
| 2.032 mm | Maximum radius of shaft or housing fillet |
Calculation data
| Dynamic load rating, Kaydon, radial direction | CK | 80.7 kN |
|---|---|---|
| Basic static load rating, radial direction | C0 | 168 kN |
| Basic static load rating, axial direction | C0a | 420 kN |
| Basic dynamic load rating, moment | CM | 17.696 kN·m |
| Basic static load rating, moment | C0M | 49.058 kN·m |
| Starting torque max. no load | 15.592 N·m | |
| Limiting speed | 80 r/min |
Tolerances and clearances
General bearing specifications
- Tolerances, radial clearance and recommended fits:
- Endurakote bearings: Class 1, Class 1, Class 3, Class 4
- bearings: Class 1
- other bearings: Class 1, Class 1, Class 3, Class 4, Class 6
- Materials

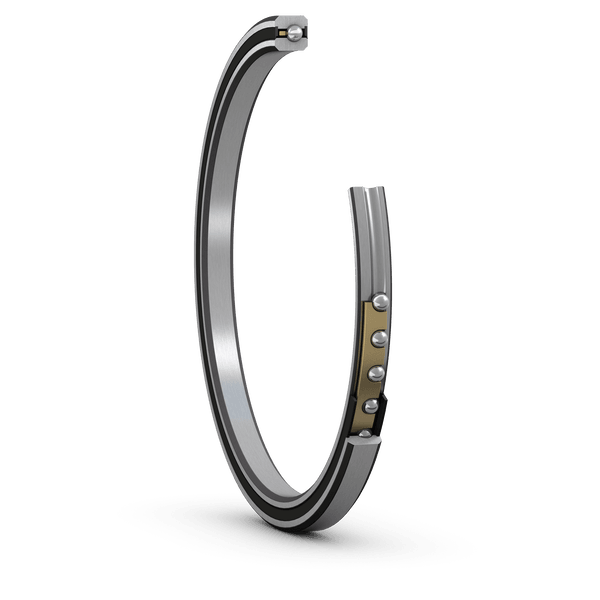

Four-point contact ball bearings with seals or shields can accommodate radial, axial and moment loads simultaneously. One bearing series is based on a single cross section which remains constant as the bore diameter increases, leading to significant space and weight savings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. The bearings are available with and inch boundary dimensions.
- Accommodate radial, axial and moment loads simultaneously
- Require considerably less axial space than two angular contact ball bearings
- Integral sealing prolongs bearing service life
- Thin cross section
- Lightweight
- Low friction
- High stiffness
- High running accuracy
